KCT-17742

Drop-down list front-end menu

What’s New:

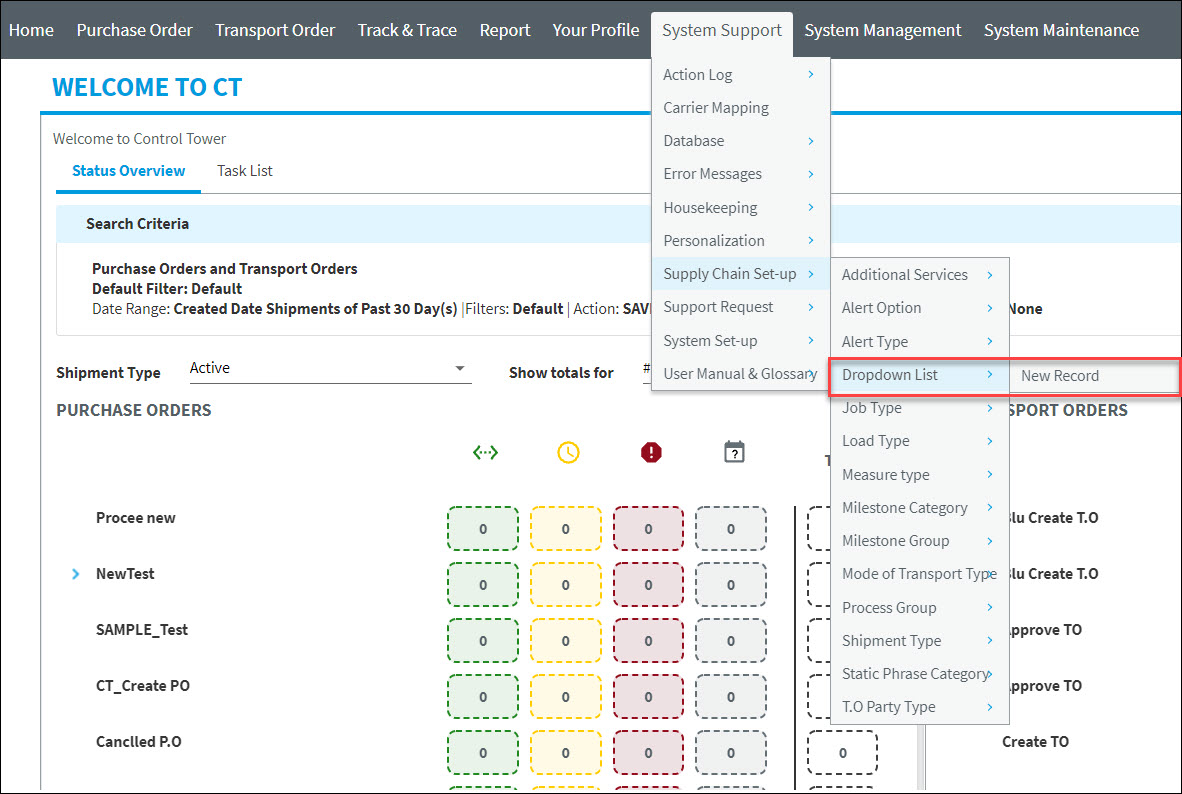

A new sub-menu option Dropdown List is added under System Support > Supply Chain Setup.

•The option is visible by default to the admin users.

•Visibility of the sub-menu option to other users/roles/role categories is based on the permissions.

Clicking the Dropdown List option opens the DROPDOWN LIST screen. The screen shows the list of all the existing records available in tbldropdown and an expandable Search panel.­­

Search:

1.To search for a drop-down record, expand the Search panel.

2.Enter the search criteria.

3.To clear the entered data, click [RESET].

4.After entering the details, click [SEARCH].

5.List of matching records will be displayed on the screen.

6.When there are no matching records, a message “No records found” message will be displayed on the screen.

Remove:

1.To remove a record, select the record from the list.

2.A screen appears with the DROPDOWN LIST record details. Click [REMOVE].

3.A confirmation message “Are you sure you want to delete this record?” appears on the screen. Click [OK] to continue with the deletion. Click [Cancel] to cancel the deletion.

4.To go back to the previous screen, click [BACK].

Note: [Remove] option is not available for all the records. It is available only for those records for which a new record can be added.

New Record:

1.To add a new record, go to Support > Supply Chain Setup > Dropdown List > New Record. The DROPDOWN LIST screen appears.

2.Select the Field value from the drop-down options.

3.Enter Code and Name details. Click [SAVE].

4.If the data entered for the new record is not unique, a message “Information Exists” will be displayed on the screen.

Note: When CMUSReport is selected in the Field drop-down, the Code field turns into ajax drop-down field. All client relation companies flow into this field. Users can also select multiple customers or “All Customers" option from the drop-down.

KCT-17568

CMUS-CT Piece Count Mapping

What’s Existing:

Header level Piece Count from Customs Management-US is not mapped to tblisfheader in Control Tower.

What’s New:

Now, the Piece Count (total number of items) data is shown at the T&T header level.

The PieceCount and UOM fields of Customs Management-US XML are mapped to Quantity and QuantityUOM fields of Control Tower’s C.O Import XML respectively.

Mapping in WSO2:

For PieceCount – Quantity: The data received from Customs Management-US is imported as is.

For UOM - QuantityUOM: The system checks if the value received from Customs Management-US is available in package type master. If it is found, the name of the package type is shown. If it is not found, the data received is shown as is.

Field Setup:

KCT-17643

Part number in User Defined Reports

What’s New:

A new column is added to the Custom Report Data and users can now view the PART NUMBER details as well in the report.

Note: If part number is included as one of the report columns, records are shown on item basis as below:

KCT-17757

Track & Trace results with sticky table header

What’s New:

On Track & Trace search results screens, the header of the results table has been made sticky, i.e., it remains affixed even when a user scrolls down or up the records.

Navigation of impacted screens:

•Track & Trace > New Search (SEARCH CRITERIA screen) > Search results screen

•Track & Trace > Search Using Templates (SEARCH TEMPLATE screen) > Search results screen
